HOSTILE VEHICLE MITIGATION (HVM)

WHAT IS HOSTILE VEHICLE MITIGATION?

Hostile Vehicle Mitigation (HVM) is a protective security discipline focussing on reducing risks associated with vehicle borne threats posed by terrorists and criminals.

HVM is the delivery of measures that are informed by the threat and how it manifests itself, the multiple consequences of an attack, the vulnerability of a given location and the needs of the enterprise requiring protection.

The basis of HVM are security risk assessments, security planning, design and the deployment of risk-based measures.

CURRENT THREAT LEVEL

Our customer base can rest assured that RH Industrials Ltd can provide a turnkey solution with the following disciplines provided by one supplier:
– Selection of Products
– Supply of Products
– Civil Engineering
– Earthing Protection
– Installation
– Interfacing with Existing Site Equipment
– Commissioning
– Site Training
– Service and Maintenance

HMV PRODUCTS RANGE

Where our product list is extensive, please note we offer solutions for both medium depth, shallow and surface fix. Also varying sizes of clear opening up to 8m (Gates). The Static Bollard range also has removable options where intermittent access may be required.

Automatic & Manual HVM Gates

PAS68: Automatic Bi-Folding Speed Gates (40/50mph 7.5T N2 & N3)
PAS68: Automatic Sliding Gates (40/50mph 7.5T N2 & N3)
PAS68: Manual Swing Gates (Single & Double) (40mph 7.5T N2)
PAS68: Automated Swing (40mph 7.5T N2)
IWA14-1: Manual Swing Gates or Access Gate (40mph 7.5T N2 & N2A / 50mph 1.5T M1) IWA1-1: Long Span 12m (50mph 7.2T N2A)

Automatic Bollards & Road Blockers

PAS68: Automatic Road Blockers/Rising Kerbs (50mph 7.5T N3)
PAS68: Automatic Rising Bollard (50mph 7.5T N3). Impact Tested as a Single Bollard. 1.2m Raise Height.
PAS68: Automatic Rising Bollard (30mph 7.5T N2). Impact Tested as a Single Bollard. 1m Raise Height.
PAS68: Ultra Shallow Rising Bollard (30mph 7.5T N2) Only 0.5m Deep Foundation.
PAS68: Shallow Foundation Bollard (40mph 7.5T N2) 0.9m Deep Foundation. Auto or Manual.
Options:
Bollards can be supplied with numerous finishes, Hot Dipped Galvanised, Painted, PPC, Stainless Steel and with Reflective Banding. Emergency Fast Operation (EFO) also available.

Static Bollards

PAS68: (50mph 7.5T N2 & N3) 750mm Deep Foundation. 273mm Diameter. Minimum 3 Array
PAS68: (40mph 7.5T N2) 750mm Deep Foundation. 219mm and 273mm Diameter. Minimum 3 Array
PAS68: (30mph 7.5T N2) 600mm Deep Foundation. 193mm and 219mm Diameter. Minimum 3 Array
PAS68: (30mph 7.5T N2) Surface Mount. 219mm Diameter. Minimum 3 Array
PAS68: (30mph 7.5T N2) 400mm Foundation. 219mm Diameter. Tested as a Single Bollard
PAS68: (40mph 7.5T N2) 125mm Foundation. 219mm and 273mm Diameter. 3 Array
Options:
Bollards can be supplied with numerous finishes, Hot Dipped Galvanised, Painted, PPC, Stainless Steel and with Reflective Banding. Removable and Manual Retractable options available.

Retractable Bollards

IWA14-1: (50mph 7.2T N2A) 1514mm Foundation. 230mm Diameter. Impact Tested as a Single Bollard.
IWA14-1: (50mph 7.2T N2A) 1514mm Foundation. 230mm Diameter. Impact Tested as a 2 Array.
PAS68: (50mph 7.5T N2) 1514mm Foundation 230mm Diameter Impacted Tested as a 2 Array.

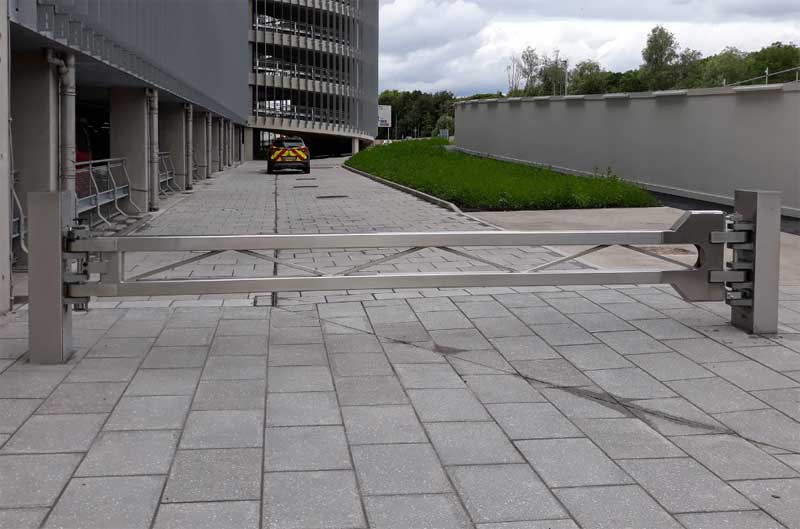

Barriers & Beams

IWA14-1: (40mph 7.5T N2) Automatic Rising Arm Barrier. 6.2m Max Clear Opening (C/O)
IWA14-1: (40mph 7.5T N2) Manual Rising Arm Barrier (Hydraulic Hand Pump). 6.2m Max Clear Opening (C/O)
IWA14-1: (30mph 7.2T N2A) Bridge Expansion Beam. (To be used in conjunction with other Bollards). Span 5.3m Approx.

Street Furniture

PAS68: Cycle Frame (30mph 3.5T N1 @ 90° & 15°) 250mm Foundation
PAS68: Cycle Frame (40mph 7.5T N2 @ 90° & 15°) 250mm Foundation
PAS68: Hand Fail (30mph 7.5TN2) 400mm Foundation, 3m Vertical Spacings with Removable Horizontal Rails.

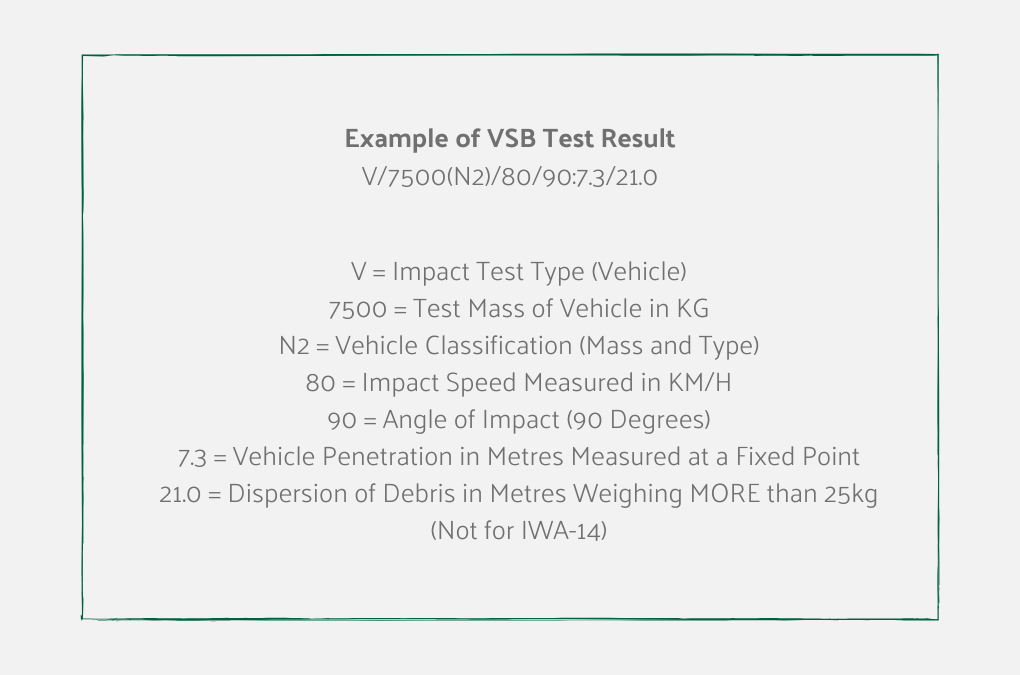

STANDARDS & TESTING

WHAT IS PAS 68?
PAS 68 is the Public Available Specification for impact performance requirements for Vehicle Security Barriers (VSB), Gates, Bollards, Blockers, Fencing and Street Furniture. Guidelines set out by the British Standards Institution (BSI) specifies a classification system for the performance of Vehicle Security Barriers subjected to a horizontal impact. VSB will be tested against a range of methods to be granted classification, such as , impact methods, vehicle types, speed, weight and their performance.

WHAT IS IWA14-1?
IWA-14 (International Workshop Agreement) defines the essential impact performance requirement for a Vehicle Security Barrier (VSB) and is a global standard prepared with input from the USA Department of State and CPNI/BSI. This standard combines and updates elements from PAS 68, ASTM F2656 and CWA16221.

WHAT IS THE DIFFERENCE BETWEEN PAS68 AND IWA14-1?
IWA-14 follows similar testing structure to PAS68, but with two main differences:
– IWA 14 Penetration Measurement is Taken From The Front Face, PAS68 is Taken from the Back.
– IWA 14 Debris Dispersion is NOT Recorded

WHAT IS PAS69 AND IWA14-2?
– PAS69 Provides Guidance on Selection, Installation and use of Vehicle Security Barriers (VSB).
– IWA14-2 Provides Guidance on the Selection, Installation and use of Security Barriers (SB).

PROTECT DUTY

The Government is proposing to introduce a new Protect Duty from 2022. This legislation, and the changes it brings, will enhance the protection of the United Kingdom’s publicly accessible places from Terrorist Attacks and ensure that Businesses and Organisations are prepared to deal with incidents.

For further information, please visit the Centre for the Protection of National Infrastructure (CPNI), Protect Duty Consultation or GOV.uk.
